4mm 6mm Metal Surface Hardening Quenching Machine
  • 4mm 6mm Metal Surface Hardening Quenching Machine
  • 4mm 6mm Metal Surface Hardening Quenching Machine
  • 4mm 6mm Metal Surface Hardening Quenching Machine
  • 4mm 6mm Metal Surface Hardening Quenching Machine
  • 4mm 6mm Metal Surface Hardening Quenching Machine
4mm 6mm Metal Surface Hardening Quenching Machine

4mm 6mm Metal Surface Hardening Quenching Machine

Место происхождения Китай
Фирменное наименование Lanshuo
Сертификация CE
Номер модели LCN-1500
Подробная информация о продукции
модель:
LCN-1500
Тип:
Индукционное тушение
Приложение:
Стержни, штанги, редукторы, отверждение роликов
Максимальные длины зажимающей части:
1500 мм
Максимальная длина тушильных частей:
1500 мм
Наибольший диаметр тушильных деталей:
600 мм
Наибольшие общие части тушения:
300 кг
Скорость вращения шпинделя:
0-200 оборотов
Скорость движения деталей:
1-60 мм/с
Точность определения местоположения мобильного устройства:
± 0,1 мм
Выделить:

4mm metal hardening quenching machine

,

6mm CNC quenching machine

,

metal surface hardening machine with warranty

Условия оплаты и доставки
Количество мин заказа
1 комплект
Цена
USD 12000-13000 / set
Упаковывая детали
фанерный корпус
Время доставки
7-15 рабочих дней после внесения депозита
Условия оплаты
LC, D/A, D/P, T/T, Western Union, MoneyGram
Поставка способности
1000 комплектов в год
Описание продукта

LCN-1500 CNC Induction Quenching Hardening Machine Tool

I. Main configuration of CNC Induction Quenching Machine Tool:
1. CNC system control;
2. Stepper motor drive;
3. Ball screw drive;
4. Cylinder linear guide rail, ball slider sliding;
5. AC variable speed motor drive sprocket chain, the light bar to rotate the workpiece;
6. AC gear motor drive screw, screw the top down;
7. Solenoid valve control water;
8. With a heating device control plug.
II. Main technical parameters of CNC induction quenching machine tools

Model
LSN-2000
LSN-1500
LSN-1000
LSN-600
Max lengths of the clamping parts(mm)
2050
1250
1050
650
Max length of quenching parts(mm)
2000
1200
1000
600
The largest diameter quenching parts(mm)
600
600
600
600
The largest total quenching parts (Kg)
150
150
150
150
Spindle rotation speed (rps)
0-200
0-200
0-200
0-200
Workpieces moving speed ( mm/s)
1-60
1-60
1-60
1-60
Mobile positioning accuracy (mm)
±0.1
±0.1
±0.1
±0.1


III. Advantages of Our CNC Hardening Machine Tool:
1. The induction heating machine adopts IGBT modules, high efficiency, energy saving.
2. Environmentally friendly. Almost no oxide layer, produced no exhaust, no waste-water is generated.
3. Heating fast and uniform.
4. A unique cooling circulation system, ensure that the equipment 24 hours of continuous work.
5. Easy installation, simple operation.
6. Safe and reliable. No high voltage, very safe for operating people.
7. Machine power can be adjust step-less.
8. It has complete self-protect functions: such as many types of alarm lamps: over-current, over-voltage, over hot, water shortage etc, can also control and protect itself.
IV. Applications of Our CNC Hardening Machine Tool:

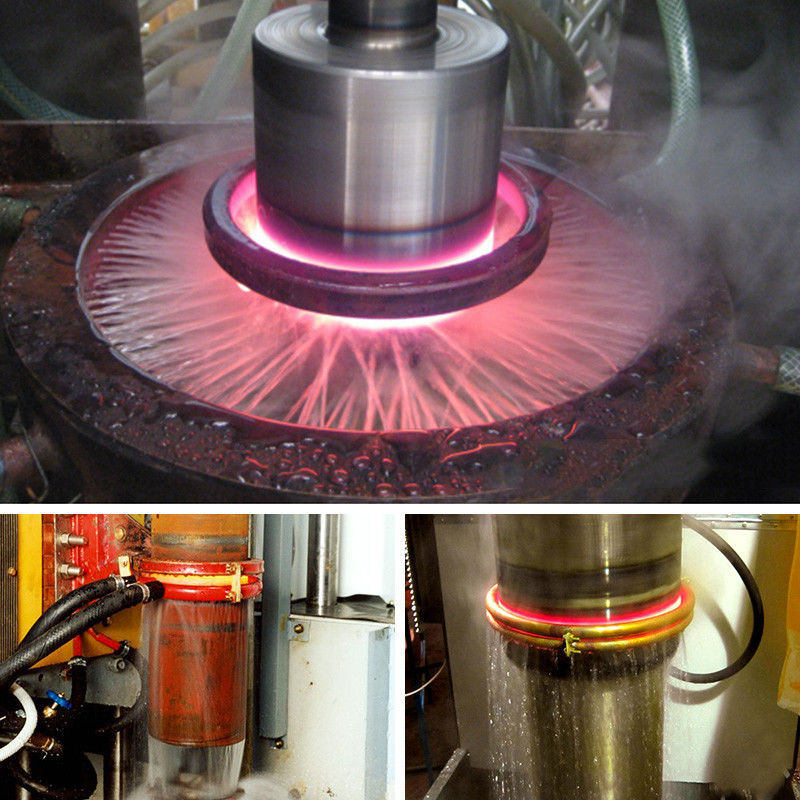

Shaft: Single heating spray hardening, segmental single heating spray hardening, continuous heating spray hardening, segmental continuous heating spray hardening.
Gear: Overall single heating spray hardening, single tooth single heating spray hardening, single tooth continuous heating spray hardening.
Disc-type workpiece:Overall single heating spray hardening, circumferential surface continuous heating spray hardening.
4mm 6mm Metal Surface Hardening Quenching Machine 0
4mm 6mm Metal Surface Hardening Quenching Machine 1

4mm 6mm Metal Surface Hardening Quenching Machine 2

V. Certificates

4mm 6mm Metal Surface Hardening Quenching Machine 34mm 6mm Metal Surface Hardening Quenching Machine 4
